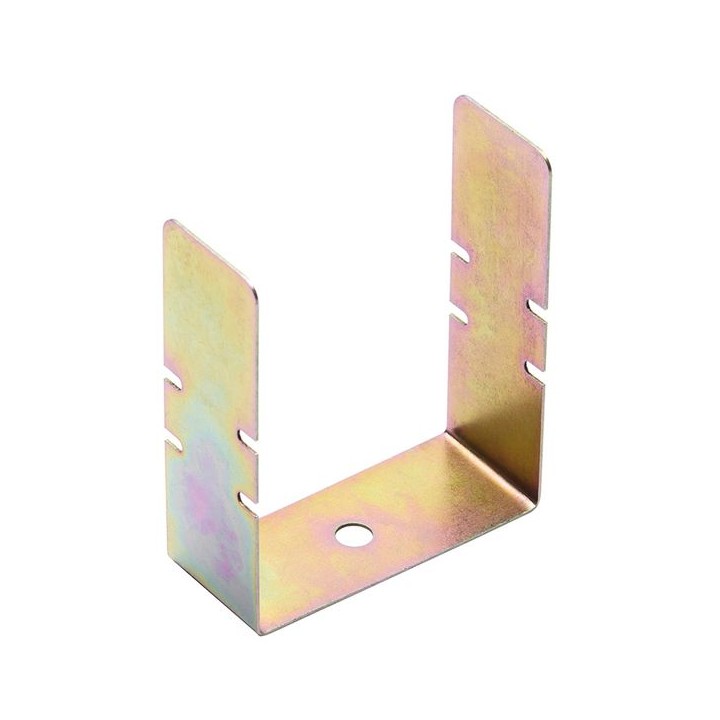

D-line SAFE-D50 Fire Clip 50mm PK50

Safe-D Fire Rated Cable Clips are fully certified to satisfy legislative requirements to secure all surface cables in escape routes in residential and non-residential buildings (Amendment 3 to the 17th Edition, BS7671:2015, Wiring Regulations). When used with appropriate fixings Safe-D Clips can securely hold bundles of cables on a surface at 970ºC for at least 2 hours. Manufactured in the UK using specific high-temperature pliable steel produced to BS EN standards with full traceability. Safe-D Clips have a passivated finish to protect against corrosive elements and minimise the risk of rust failure. Safe-D Clips feature 20mm tab widths; while the specific pliable-gauge and smooth/rounded corners (as required by design-code BS7671 s 522.8.11) protect both cables and installers; unique features which make Safe-D Clips the quickest and easiest to install. Safe-D50 Clips are suitable for use with standard trunking Size 6 (50x25mm), Size 7 (50x32mm), or Size 8 (50x50mm).

Features & Benefits

• High-temperature rated Safe-D Clips can hold cables for 2 hours at 930°C (+40º -0º)
• All Safe-D Clips are fully tested as BS5839 part 1 compliant
• by Exova Warrington Fire… 20mm wide side-tabs & pliable gauge combine for quickest and easiest folding
• Smooth & rounded edges, as required by design code BS7671 s522.8.11, to protect soft-skin cables etc (and user friendly!)
• Passivated non-corrosive coating on all faces & edges - Ideal for ceiling voids, or popular PVC trunkings
• 6mm diameter hole accepts all popular non-combustible fixings
• Ideal for ceiling voids, or popular PVC trunkings

Technical Specifications

unit	pack
material	Passivated Steel
brand name	D-Line
pack quantity	50
country origin	United Kingdom
manufacturer model no	SAFE-D50/50
