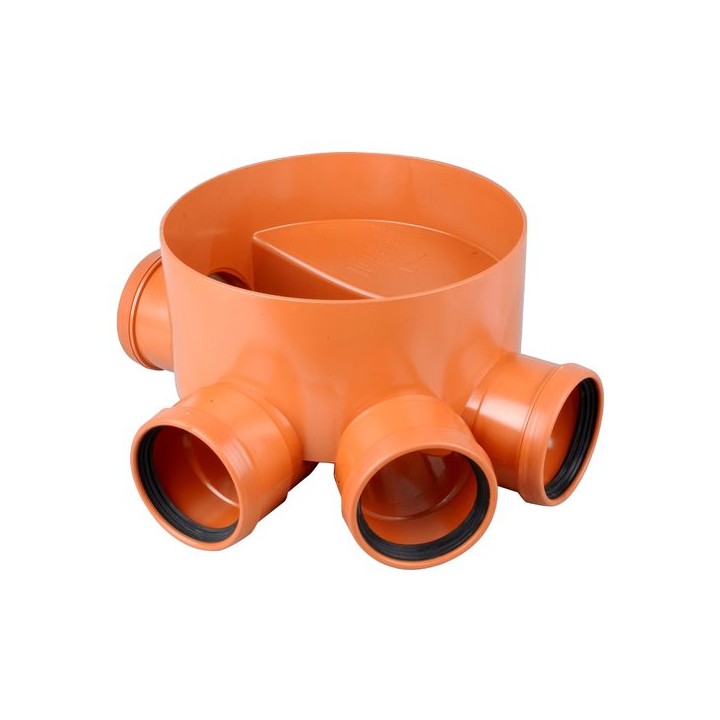

• Osma 315mm Multi-Base Inspection Chamber Base inc. 45°and 90° Right-hand Branches 110mm 4D934

Osma 315mm Multi-Base Inspection Chamber Base inc. 45°and 90° Right-hand Branches 110mm 4D934

65.98
ex. VAT
£79.18 inc. VAT
Osma 315mm diameter Multi-Base Inspection Chamber (MBIC) range for installation to a maximum invert depth of 0.6m (non-adoptable) and 0.9m (adoptable)

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Osma 315mm diameter Multi-Base Inspection Chamber (MBIC) range for installation to a maximum invert depth of 0.6m (non-adoptable) and 0.9m (adoptable)

Features & Benefits

  • 315mm base for use with Osma Multi-Base Shallow Inspection Chamber (MBIC)
  • 110mm straight channel with one 110mm x 45° and one 110mm x 90° right hand branch entry
  • for use with 110mm OsmaDrain components
  • Lightweight, quick and easy to install
  • For a maximum invert depth of 0.6 metres (0.9m adopted areas only)
  • For loading applications of 15kN (1.5 tonnes)
  • For use with 4D937 shaft
  • Choice of 10 base configurations to achieve most suitable / cost effective solution.

Technical Specifications

typeInspection Chamber Base
uniteach
rangeOsma Inspection Chambers
width222 mm
colourBrown
length473 mm
weight5.27 kg
diameter110 mm
materialPVC-U
brand nameOsma
dimension 1315.0
made to orderN
pack quantity1
country originUK
range descriptionOsma Inspection Chambers
manufacturer model no4D934

  • Reference
    813838

  • pack quantity
    1
  • diameter
    110 mm
  • width
    222 mm
  • dimension 1
    315.0
  • length
    473 mm
  • manufacturer model no
    4D934
  • weight
    5.27 kg
  • colour
    Brown
  • unit
    each
  • type
    Inspection Chamber Base
  • made to order
    N
  • brand name
    Osma
  • range
    Osma Inspection Chambers
  • range description
    Osma Inspection Chambers
  • material
    PVC-U
  • country origin
    UK
