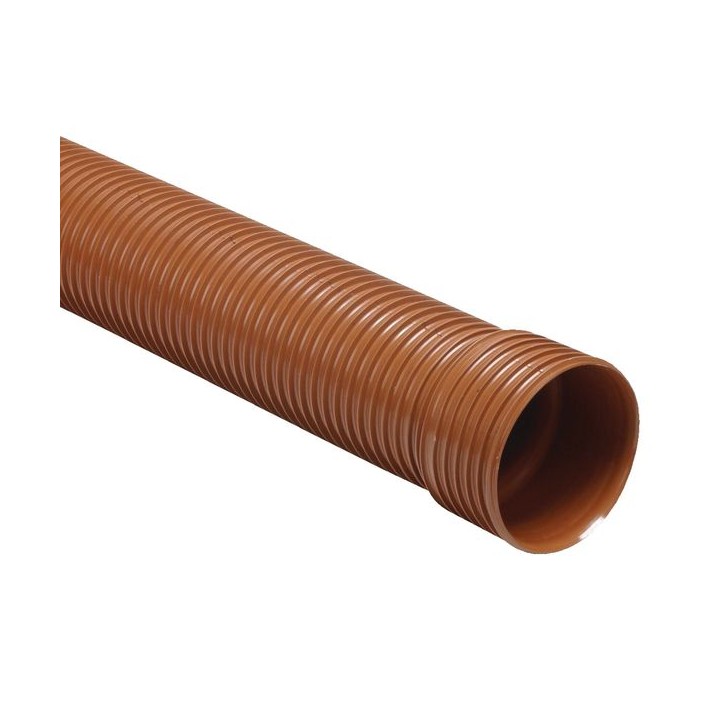

Osma UltraRib 300mm Single Socketed Pipe 3m length 12UR043

Osma UltraRib is a fully socketed system of pipe and fittings which combines secure jointing with ease of installation. For foul and surface water drainage for adoptable and non adoptable situations requiring a high stiffness classification

Features & Benefits

• UltraRib pipe provides exceptional radial strength from external ribs, whilst remaining lightweight for easy installation
• Single socketed 300mm x 3m pipe with SN8 stiffness class
• The smooth interchange between pipe and fittings gives improved hydraulic flow
• Osma UltraRib joints are made be placing the sealing ring between the second and third external reinforcing ribs nearest the spigot end of the pipe, which is then inserted into a socket
• No need to chamfer pipe when jointing & ring displacement is impossible during installation
• Available in 150-300mm diameters, UltraRib can be used up to a depth of 10m
• BS EN 13476-3, WIS 4-35-01 and BBA approved

Technical Specifications

type	Pipe
unit	each
depth	376 mm
range	UltraRib
width	376 mm
colour	Brown
height	376 mm
length	3196 mm
diameter	300 mm
material	PVC-U
brand name	Osma
dimension 1	300.0
country origin	UK
range description	UltraRib
manufacturer model no	12UR043
