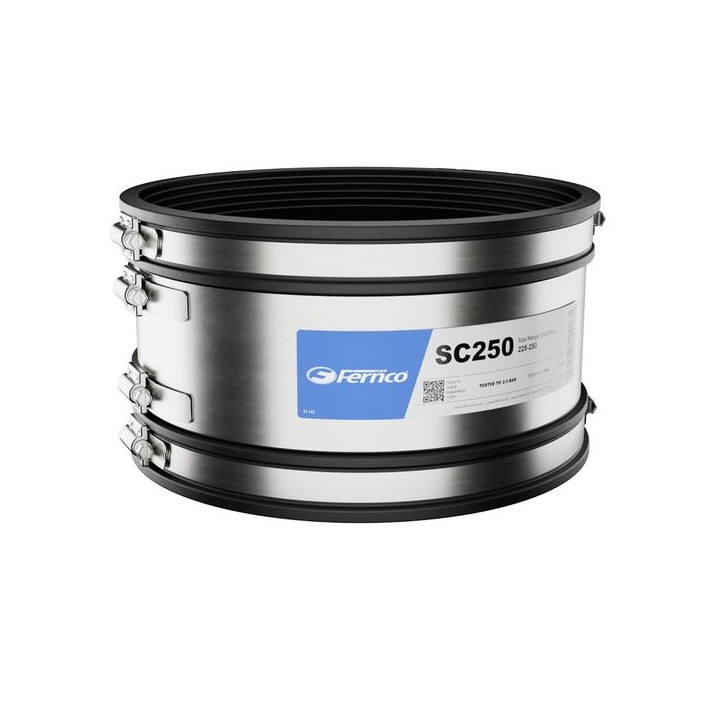

Fernco SC250 Standard Coupling 225-250 mm

Fernco Standard Couplings, sometimes referred to as shear couplers, are simple, easy-to-use drainage pipe connectors. Standard couplings are specifically designed to connect and repair pipes on adopted sewer and drainage applications, as required by the UK water companies. The stainless steel central band protects the joint under shear loads and helps to keep the joining pipes aligned, helping to prevent pipe displacement. These simple yet effective connectors can be tightened onto pipes using a nut driver and torque wrench, creating a permanent airtight and watertight seal in just seconds. Fernco Standard Couplings are the tried and tested method for connecting adopted or public drainage systems, and with a range developed over 30 years, Fernco has a Standard Coupling for almost any pipe configuration. Applications include highways, utilities, infrastructure, repair and maintenance, etc.

Features & Benefits

• Withstands an internal pressure of up to 2.5 bar
• A proven, tested and durable coupling design ensuring a high performance and a reliable connection
• Stainless steel shear band provides excellent resistance to heavy loads and shear forces
• Reduces excavation work
• Complies with WIS 4-41-01 (all public sewers and sewers for adoption)
• Complies with BS EN 295 Part 4 & EN681-1: 1995 requirements for vitrified clay pipes and fittings
• Shear band ensures joint integrity and pipe alignment under load

Technical Specifications

type	Coupling
unit	each
width	150 mm
colour	Black
material	EPDM & Steel
brand name	Fernco
pack quantity	1
maximum diameter	250 mm
minimum diameter	225 mm
manufacturer model no	SC250
