Forest Garden 5 x 3m Elmley Log Cabin Underlay and Felt 34

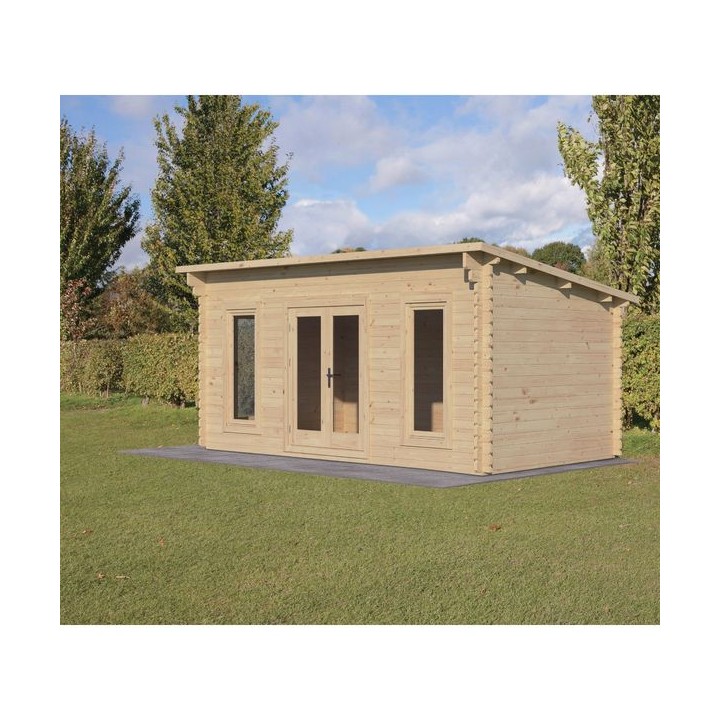

The Elmley is a mid sized Log Cabin with a 5m wide x 3m deep footprint and contemporary pent roof design. It's impressive specification includes 45mm thick interlocking log walls, 19mm tongue and groove floor and roof, double glazed double doors, two tilt and turn double glazed windows to the front and a 3/4 length double glazed tilt and turn side window that can be positioned in the left or right wall. All windows are double glazed with toughened glass. Overall dimensions are 5.24 meters x 3.36 metres (17 x 11 feet) and the front of the roof features a 36cm overhang for weather protection. The internal floor dimensions of 4.7m x 2.7m give a total floor area of 12.77 m² (137 square feet) which is a substantial room space big enough for lots of uses such as a as multi desk office, office and lounge, lounge/diner, hobby/games room or gym. With plenty of windows to allow natural light in this makes the Elmley log cabin a very usable and versatile extension to your living space. Different roof felt options are available with this option being supplied with 34kg weight Polyester felt and black sand felt underlay. The felt has a polyester fibre base layer that makes it much stronger and more tear resistant than non-polyester grades. With more than three times the tear resistance of conventional mineral felt it has a life expectancy of up to 20 - 30 years when fitted correctly. All deliveries are made by vehicles with a crane off-load facility and with an optional professional assembly service. The log cabin must be built upon a solid and level surface such as a poured concrete base.

Features & Benefits

• Sizeable 5m x 3m log cabin with 137 square feet of internal floor space
• High specification includes 45mm thick log walls, toughened glass double glazing throughout, tilt and turn windows and mortise locking double doors
• 19mm Tongue & Groove roof and floor boards
• Glazed double doors, two windows to the front plus 3/4 length side window that can be positioned either side
• High quality, tear resistant, 34kg weight Polyester fibre backed felt and black sand felt underlay
• Supplied untreated and unpainted (a solvent-based preservative must be applied after assembly)

Technical Specifications

type	Log Cabin
unit	each
depth	3370 mm
width	5240 mm
colour	Natural Timber
finish	Smooth Planed
height	2420 mm
weight	4130 kg
material	Timber
treatment	Kiln Dried
brand name	Forest Garden
made to order	N
size imperial	17 x 11 ft approx
country origin	Lithuania
wall thickness	45 mm
number of doors	2
number of windows	3 opening
