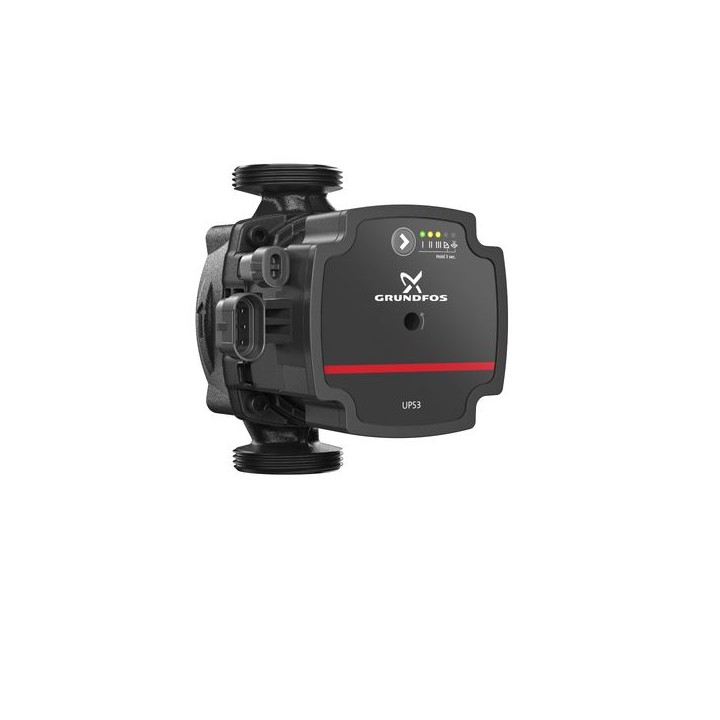

Grundfos USP3 15-50/65 130 Domestic Heating Circulator

188.68

ex. VAT

£226.42 inc. VAT

The new UPS3 is a compact, high efficiency replacement for Grundfos UPS and UPS2 15-50/60 circulator pumps and many internal boiler pumps. Suitable for domestic heating systems with boilers up to 30kW, just one model of UPS3 can be used to replace all previous 4m, 5m and 6m head versions of UPS and UPS2 pumps. Using the GO Replace app, suitability for replacing a wide range of internal boiler pumps can also be confirmed.

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Features & Benefits

Energy efficient replacement circulator pump that exceeds the EuP EEI rating
Ceramic bearings and shaft prevent magnetite build up and extend life
3 fixed speed modes plus underfloor (constant pressure) and proportional pressure modes – enable selection of the setting that best fits the system demands
Innovative, easy to fit installer plug
Fault code indications and dry access port enable fast unblocking
Increased head – now up to 6.5m
Compatible with Grundfos GO replace
No need to disconnect pipework if just replacing the pump head (backplate is compatible) - minimises access issues and leakage risks
Suitable for compact spaces
5 year warranty

Technical Specifications

unit	each
depth	197 mm
width	114 mm
height	171 mm
weight	2 kg
voltage	230 V
brand name	Grundfos
maximum head	6.5
made to order	N
maximum pressure	10 bar
years guaranteed	5
maximum flow rate	3.8m³/h
range description	Domestic heating circulator
manufacturer model no	99199622
