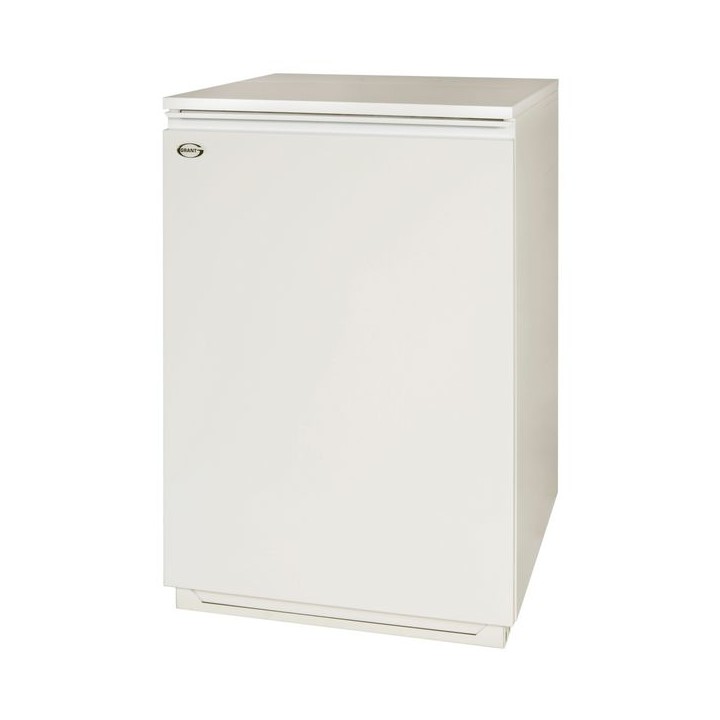

Grant Vortex Pro 26kW Combi Oil Boiler

The latest Grant Vortex Pro internal combination oil boiler features a 24 litre expansion vessel, neon diagnostic indicators and a factory-fitted condensate trap - all designed to make installation and servicing easier. With larger than normal plate heat exchangers, the hot water performance of this high-efficiency combi boiler is vastly increased. The two very accurate electronic temperature controls allow the boiler to operate in condensing mode on central heating and instant hot water production can be maintained. In addition, a low system pressure cut off switch protects the combi boiler in the event of system water loss.

Features & Benefits

• 2 year guarantee
• Simple and quick to install with no complicated wiring or plumbing
• Compact design
• Suitable for kitchen installations
• Riello RDB burner (with plug and socket connection)
• High-efficiency circulating pump
• Grant Vortex stainless steel heat exchanger
• Multi-directional flue options
• SEDBUK SAP 2009 ‘A’ rating and registered with the Energy Savings Trust

Technical Specifications

unit	each
depth	614 mm
width	614 mm
height	860 mm
brand name	Grant
boiler type	Combi
heat output	26 kW
made to order	N
solar compatible	Yes
years guaranteed	2
range description	Grant Vortex Pro Combi
manufacturer model no	VTXCOMBI26
sedbuk sap 2005 rating	0.922
sedbuk sap 2009 rating	A
ch condensing max output	26 kW
maximum vertical flue 100mm	19 mm
maximum horizontal flue 125mm	3 mm
dhw flow rate at 35 degree rise	17 L
registered with the energy savings trust	Yes

Datasheets

• TECH Sheet 1 - Grant Vortex Pro 26kW Combi Oil Boiler
