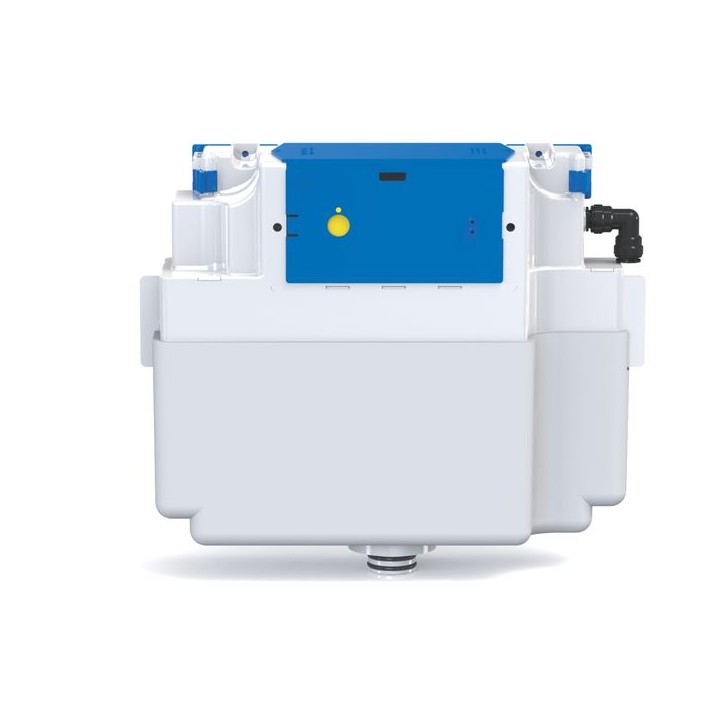

Dudley Vantage Concealed Cistern Single Flush With Jacket and Round Chrome Plated Push Button 314408

165.97

ex. VAT

£199.16 inc. VAT

Designed specifically for use in bathroom furniture and ideal for use behind tiles and partitioning and in most other concealed applications

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Designed specifically for use in bathroom furniture and ideal for use behind tiles and partitioning and in most other concealed applications

Features & Benefits

Supplied factory assembled for quick and easy installation
Supplied with a WRAS approved Dudley Niagara flushing valve
Supplied with a WRAS approved Dudley delay fill Hydroflo quiet inlet valve
Supplied with a push fit water inlet elbow and flush bend with an integral isolating valve
Front and top access panels side inlet and single flush
Air tubes enable button plate or sensor to be installed up to 750 mm away from the cistern
Cistern body in high density polyethylene
Internal overflow warning
Comes with a Polystyrene insulation jacket
With water saving 6 or 4 litre flush

Technical Specifications

unit	each
depth	125 mm
width	460 mm
colour	White
finish	Gloss
height	369 mm
weight	3 kg
capacity	6 L
material	Polyethylene
brand name	Thomas Dudley
made to order	Y
entry direction	Side
years guaranteed	3
range description	Concealed Cisterns
manufacturer model no	314408

Datasheets

TECH Sheet 1 - Dudley Vantage Concealed Cistern Single Flush With Jacket and Round Chrome Plated Push Button 314408

Reference

531331

depth

125 mm
years guaranteed

3
weight

3 kg
manufacturer model no

314408
height

369 mm
width

460 mm
capacity

6 L
range description

Concealed Cisterns
unit

each
finish

Gloss
material

Polyethylene
entry direction

Side
brand name

Thomas Dudley
colour

White
made to order

Y
