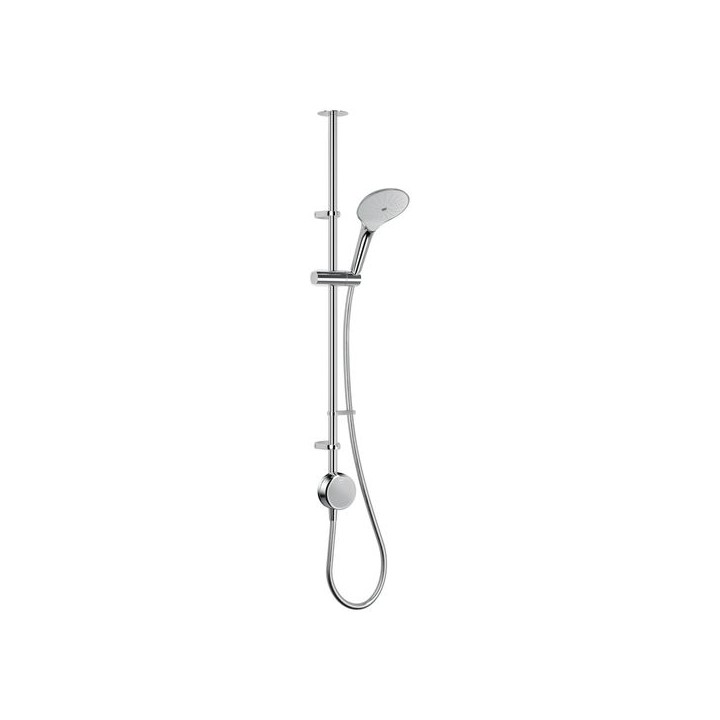

Mira Activate Ceiling Fed (Pumped for Gravity) 1.1903.090

Create your perfect shower experience with advanced connected features – including app control, and our intuitive digital controller. Ceiling-fed supply, with integrated pump for low pressure water systems.

Features & Benefits

• App and voice- enabled digital shower with stylish LED temperature and flow display. Configure and control the shower from your phone using the app or using the intelligent digital controller
• Suitable for High Pressure Water Systems Only
• Digital interface, app or Alexa-enabled controls
• 4-Spray pattern push -button Mira Switch showerhead, Retrofits the Aqualisa Quartz
• LED temperature and flow display,Pre-assembled fittings kit for ease of installation
• Thermostatic Temperature stability with Adjustable Max. Temperature Stop,Slide bar mounted digital controller requires no drilling through tiles,Suitable for Low Pressure Water Systems Only
• Minimum maintained pressure: Pumped: 0.01 bar (10 cm head);High Pressure: 1 bar (10 metre head)
• Maximum maintained pressure: Pumped: 1.0 bar (10 metre head); High Pressure: 5.0 bar (50 metre head)
• Maximum static pressure: Pumped: 1.0 bar (10 metre head); High Pressure: 10.0 bar (100 metre head)
• Flow rate: Adjustable flow rate from 6 l/min to 12 l/min at 0.1 bar (Pumped for Gravity); 4 l/min to 16 l/min at 1 bar (High Pressure)

Technical Specifications

type	Mixer Shower
unit	each
wras	Y
depth	495 mm
range	Activate
width	130 mm
colour	Chrome
length	1197 mm
brand name	Mira Showers
pipe entry	Ceiling
cable entry	Rear
suitable for	Pumped
made to order	N
bathroom range	Digital
country origin	U.K
years guaranteed	5
inlet connections	Y
outlet connection	Y
temperature control	Y
manufacturer model no	1.1903.090
