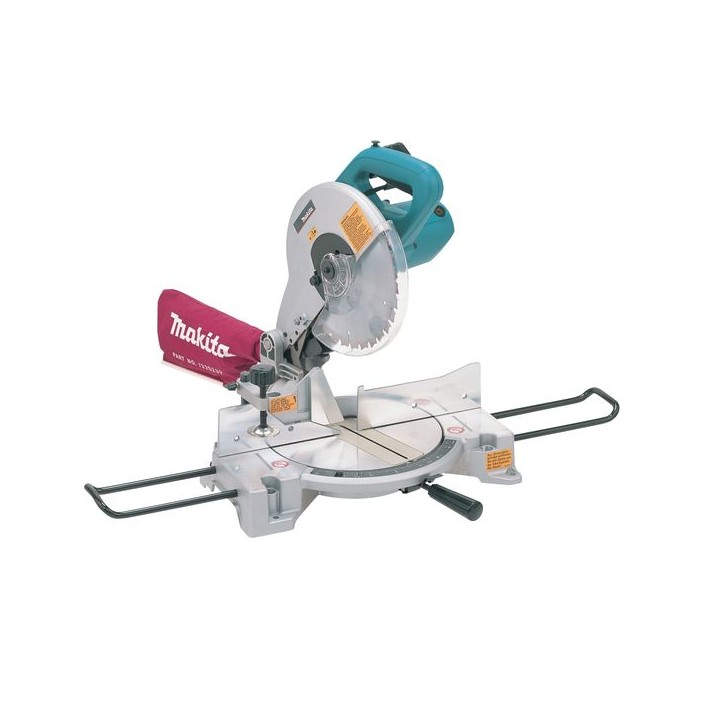

The LS1040N Compound mitre Saw for power, performance, and ease of use for most common mitre cuts. Applications include woodworking, decking, framing, etc. Bevel cuts up to 45° left. mitre adjustments range from 0° - 45° (left) and 0° - 52° (right), with positive stops at 15°, 22.5°, 30°, and 45° (left or right), and 0°.
Features & Benefits
- Pivoting fence provides efficient stock support
- Built-in dust collection system
- Electronic brake
- Double insulated
- Shaft lock for easy blade changes
- Performs compound cutting operations
Technical Specifications
| case | No |
| type | Mitre Saws |
| unit | each |
| voltage | 110 V |
| wattage | 1650 W |
| includes | switch button, triangular rule, socket wrench, sub plate assy, vise assy, holder assy, dust bag, |
| bore size | 30 mm |
| brand name | Makita |
| power type | Corded |
| cable length | 2.5 m |
| maximum bevel | 45 ° |
| no load speed | 4600 RPM |
| blade diameter | 260 mm |
| country origin | China |
| noise k factor | 3 |
| years guaranteed | 1 |
| noise sound power | 106 |
| vibration k factor | 1.5 |
| noise sound pressure | 93 |
| manufacturer model no | LS1040N/1 |
| maximum cut at 45 degrees | 90.5mm x 67mm |
| maximum cut at 90 degrees | 90.5mm x 95mm |
