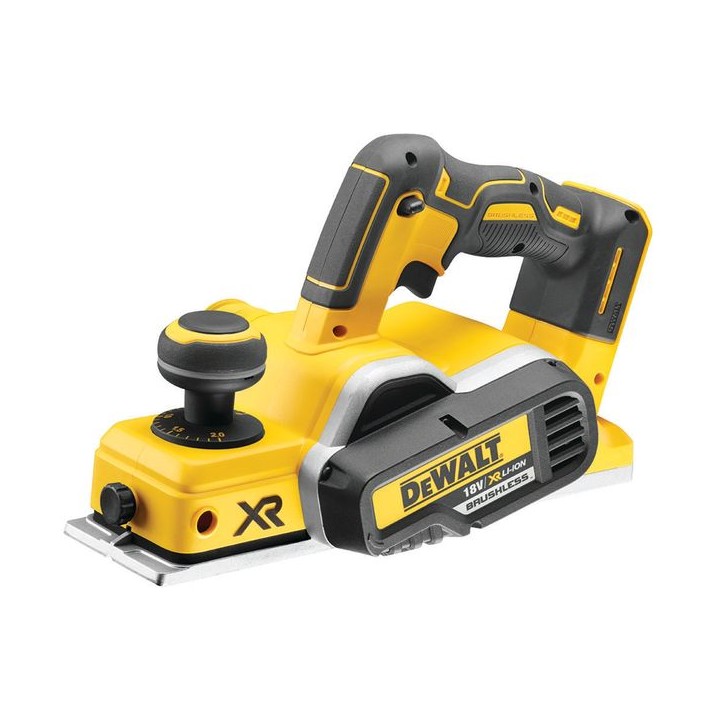

DeWalt DCP580N 82mm 18V Lithium Ion Cordless Planer with Brushless Motor

Compact and well balanced planer with a 2mm depth of cut and a 9mm rebate capacity. 0.1mm indexed fine adjustment for accurate planing. Brushless motor for excellent efficiency and long tool life. XR switch and module protect the motor from overload and battery from deep discharge. AirLock port compatibility with dust bag or extraction. Traditional blade change with hex wrench or torx key. Includes on-board blade storage for 2 x 82mm blades and Torx key storage to minimise down time. Supplied with 82mm reversible TCT blades, guide fence and alignment guide. Compatible with DeWalt XR Li-ion slide pack batteries. (Please note battery is not included).

Features & Benefits

• Brushless motor offers increased power and runtime
• Large twin blade drum with TCT blades for high quality surface finish
• On board blade storage and Torx key enable fast blade change
• 2.0mm Depth of cut for large material removal
• 0.1mm increment depth adjustment - For fine adjustment
• Air lock port is compatible with air-lock or dust bag
• 9.0mm Rebating depth
• Fast 15,000 rpm for smooth planer in even hard wood
• Tungsten carbide tipped reversible blades
• Guide fence for accurate and precise application

Technical Specifications

type	Planers
unit	each
weight	2.50 kg
voltage	18 V
brand name	DeWalt
power type	Cordless
battery type	Li-ion
made to order	N
no load speed	15000 rpm
planing depth	2.0 mm
planing width	82 mm
country origin	China
noise k factor	3 dB(A)
noise sound power	99 dB(A)
range description	Jointers and Planers
vibration k factor	1.5 m/s2
noise sound pressure	88 dB(A)
manufacturer model no	DCP580N-XJ
vibration planing softwood	1.5 m/s2

Datasheets

• TECH Sheet 1 - DeWalt DCP580N 82mm 18V Lithium Ion Cordless Planer with Brushless Motor
