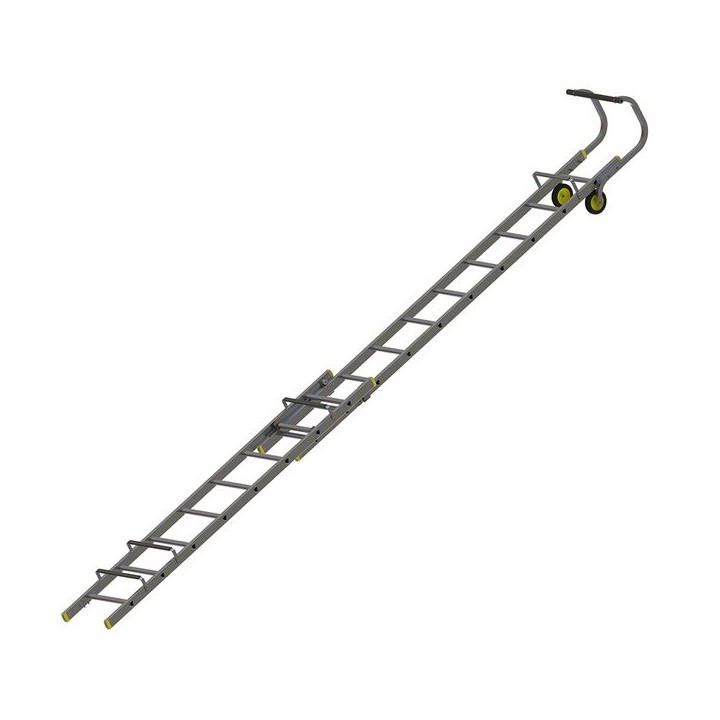

Werner 77101 Double Section Roof Ladder 3.21m

The 77101 Double Section Roof Ladder 3.21m has an optimum weight frame for ease of positioning with no compromise on strength. Fitted with a heavy duty roof hook with large non-slip rubber end bar for a superior apex fit. Heavy duty locking catches and non-slip rubber sleeved support bars for roof protection. Large wheels for easy manoeuvring on roof. Compact for easy storage and transportation. Overall length 4.89m.

Features & Benefits

• Heavy duty roof hook reshaped for a stronger superior fit across the roof apex
• Large rubber sleeved end bar to enhance safety and grip
• Rubber sleeved non-slip support bars to provide additional protection for the roof and tiles by supporting weight evenly
• Box section stiles for strength and rigidity, lightweight but strong
• Large wheels for easy manoeuvring on roof
• Heavy duty locking catches for increased stability and prevention of sections separating
• Much easier to transport than a single section roof ladder
• Suitable for roof slopes of between 15� and 55�
• 150kg load capacity suitable for Trade use

Technical Specifications

unit	each
width	0.48 m
weight	13.05 kg
material	Aluminium
brand name	Werner
tread count	8 + 10
maximum load	150 kg (23st 9lb)
closed height	3.21 m (10ft 6in)
country origin	Hungary
maximum height	4.89 m (16ft 1in)
years guaranteed	10
manufacturer model no	77101
