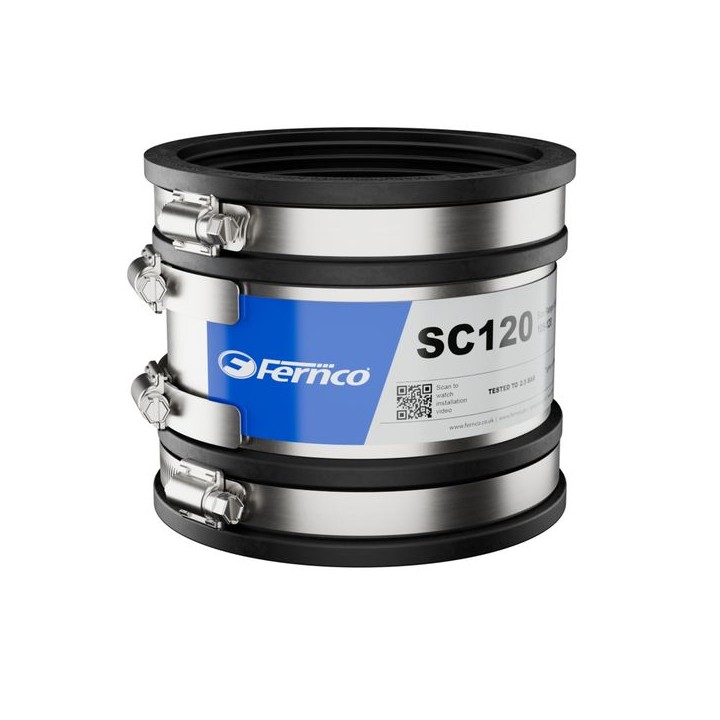

Fernco SC120 Standard Coupling 105-120 mm

Fernco Standard Couplings, sometimes referred to as shear couplers, are simple, easy-to-use drainage pipe connectors. Standard couplings are specifically designed to connect and repair pipes on adopted sewer and drainage applications, as required by the UK water companies. The stainless steel central band protects the joint under shear loads and helps to keep the joining pipes aligned, helping to prevent pipe displacement. These simple yet effective connectors can be tightened onto pipes using a nut driver and torque wrench, creating a permanent airtight and watertight seal in just seconds. Fernco Standard Couplings are the tried and tested method for connecting adopted or public drainage systems, and with a range developed over 30 years, Fernco has a Standard Coupling for almost any pipe configuration. Applications include highways, utilities, infrastructure, repair and maintenance, etc.

Features & Benefits

• Withstands an internal pressure of up to 2.5 bar
• A proven, tested and durable coupling design ensuring a high performance and a reliable connection
• Stainless steel shear band provides excellent resistance to heavy loads and shear forces to ensure joint integrity and pipe alignment
• Complies with WIS 4-41-01 (all public sewers and sewers for adoption)
• Complies with BS EN 295 Part 4 & EN681-1: 1995 requirements for vitrified clay pipes and fittings

Technical Specifications

type	Coupling
unit	each
depth	121 mm
width	120 mm
colour	Black
height	140 mm
length	140 mm
material	EPDM & Steel
brand name	Fernco
pack quantity	1
maximum diameter	121 mm
minimum diameter	105 mm
manufacturer model no	SC120

Datasheets

• DOP Sheet 1 - Fernco SC120 Standard Coupling 105-120 mm
