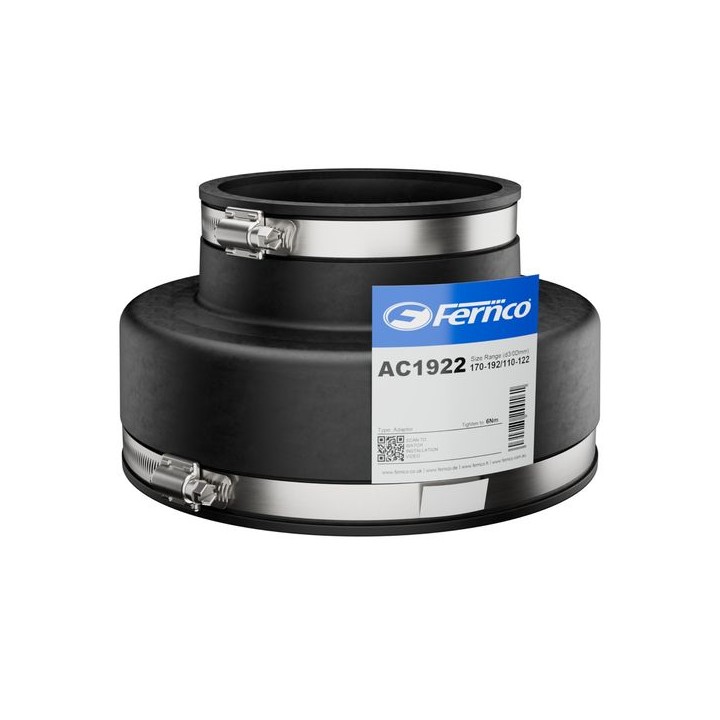

Fernco AC1922 Adaptor Coupling 170-192/110-122

Fernco Adaptor Couplings, sometimes referred to as reducer couplings, are designed to connect unadopted drainage pipes with different outside diameters – connecting larger drainage pipes to smaller drainage pipes and vice versa. These simple yet effective connectors can be tightened onto pipes using a nut driver and torque wrench, creating a permanent airtight and watertight seal in just seconds. Fernco Adaptor Couplings are the tried and tested method for connecting unadopted or private drainage systems, and with a range developed over 30 years, Fernco has an Adaptor Coupling for almost any pipe configuration. Applications include housing sites, private roads, industrial sites, agricultural land, and more.

Features & Benefits

• EPDM Rubber conforming to BS EN683
• Stainless Steel grade 306
• Provides a quick and efficient method of connecting pipes of different materials and outside diameters
• Reliable, tried and tested products
• Large variety of sizes for a multitude of pipe configurations

Technical Specifications

type	Coupling
unit	each
width	120 mm
colour	Black
height	210 mm
length	210 mm
material	EPDM & Steel
brand name	Fernco
pack quantity	1
maximum diameter	192 mm
minimum diameter	122 mm
manufacturer model no	AC1922

Datasheets

• DOP Sheet 1 - Fernco AC1922 Adaptor Coupling 170-192/110-122
