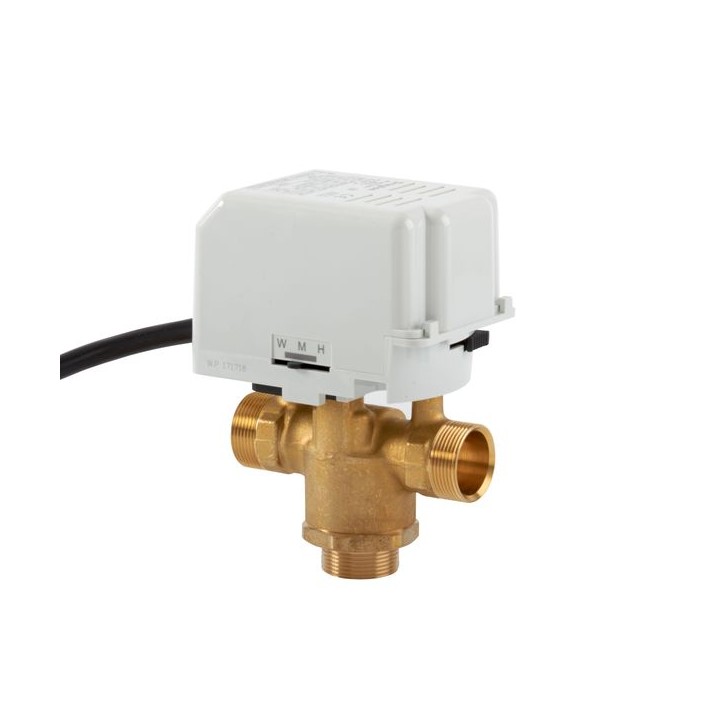

Drayton MA1/679-3 3 Port Valve Mid Position 22mm

92.92

ex. VAT

£111.50 inc. VAT

The new Drayton 3 port, diverter and mid-position valves are available in 22mm and 28mm. All models feature new "snap-on" actuators and have industry-standard wiring and dimensions

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

The new Drayton 3 port, diverter and mid-position valves are available in 22mm and 28mm. All models feature new "snap-on" actuators and have industry-standard wiring and dimensions

Features & Benefits

1.5 Year Guarantee
230V actuator with 1m 5-core cable and 3(1)A switch rating
Complete with compression fittings for 22 mm copper pipe
Manual lever and valve position indicator
Spring return with 100% tight shut off
Opens in 14 seconds
5-wire installation
Replaceable actuators and motors
5-93°C Flow Temperature
Off: 6 Seconds Under Spring Return

Technical Specifications

size	22 mm
type	Valves
unit	each
depth	70 mm
width	124 mm
height	150 mm
diameter	22 mm
material	Brass
brand name	Drayton
country origin	UK
number of ports	3
maximum pressure	8.60 bar
years guaranteed	1.5
certifications met	EN211
maximum temperature	93 deg
manufacturer model no	27101
