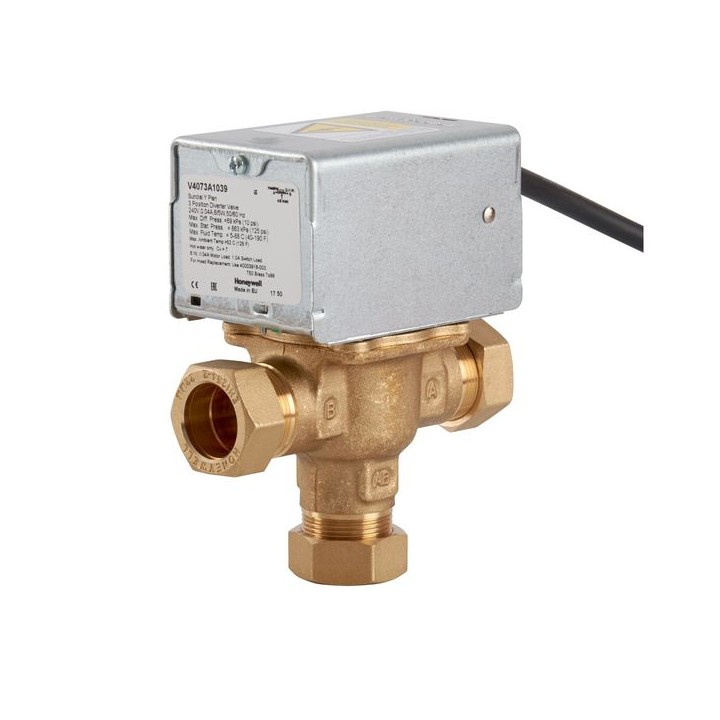

Honeywell Home 3 Port Motorised Mid Position Zone Plumbing Heating Valve 22mm V4073A1039/U

The V4073A Valve has been designed to control the flow of water in domestic central heating systems, where both radiator and hot water cylinder circuits are pumped. It is typically suited for small to medium sized installations

Features & Benefits

• 1 year guarantee
• Quiet operation, minimal power consumption
• Powerhead replaceable without draining down
• Potential free end switch for electrical control of pump and/or boiler
• Potential free end switch for electrical control of pump and/or boiler
• 1m flying lead, head resistant cable
• Valve Opens to Port B in 8 Seconds (under Spring Return)
• Provides electrical output to boiler and/or pump options 22 mm/28 mm or 3/4"
• 1" connections

Technical Specifications

size	22 mm
type	Mid-Position Valve
unit	each
depth	60 mm
width	112 mm
height	133 mm
diameter	22 mm
material	Brass
brand name	Honeywell
number of ports	3
maximum pressure	8.60 bar
range description	Motorised Valves
maximum temperature	50 deg
manufacturer model no	V4073A1039/U
