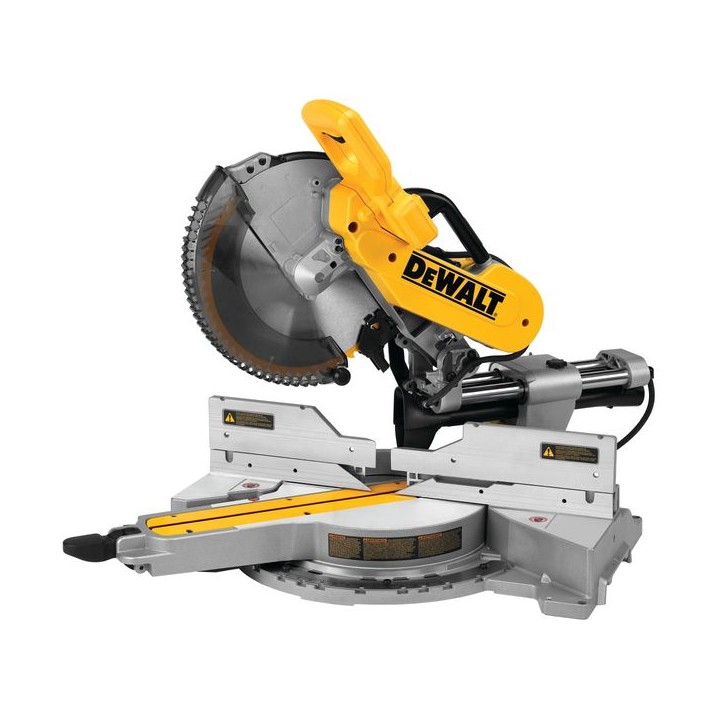

DeWalt 110V 305mm Mitre Saw DWS780-LX

The DeWalt 110V 2305mm Mitre Saw has been constructed with a heavy duty motor that delivers powerful cutting for all types of materials. The XPS Shadow line cut indicator offers fast and accurate alignment of the blade while illuminating the work piece for increased productivity, with no adjustment required.

Features & Benefits

• Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece
• Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool
• Quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
• Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
• If registered within 1 month of purchase with MYDEWALT guarantee extended to 3 years
• The large dual sliding fence gives maximum support in large material cuts at any angle
• Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
• Electronic speed control for adjusting cutting speed when cutting materials other than wood

Technical Specifications

case	No
type	Mitre Saws
unit	each
weight	24.80 kg
voltage	110 V
wattage	1675 W
includes	Dust bag, Blade spanner, High Quality 60 tooth blade, Material Clamp
bore size	30 mm
brushless	No
brand name	DeWalt
power type	Mains
maximum bevel	49/49°
no load speed	1900-3800 RPM
blade diameter	305 mm
years guaranteed	1
noise sound power	100 dB(A)
vibration k factor	1.5 m/s²
maximum cut in wood	170 mm
noise sound pressure	93 dB(A)
manufacturer model no	DWS780-LX
maximum cut at 45 degrees	212 x 76mm (45/45°)
maximum cut at 90 degrees	303 x 110mm (90/90°)
