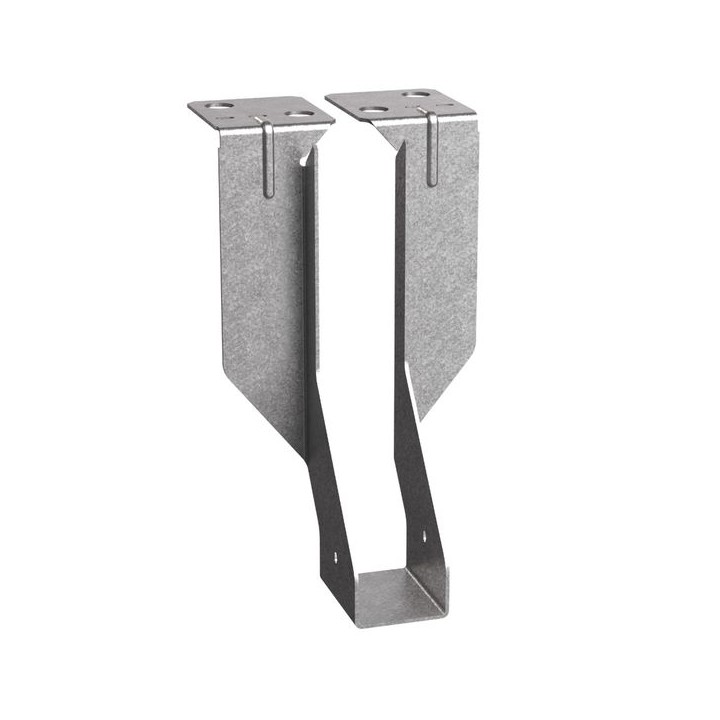

Simpson JHM225/47 Masonry Supported Joist Hanger

Simpson JHM225/47 Masonry Supported Joist Hanger

1.67

ex. VAT

£2.00 inc. VAT

The JHM range of joist hangers can be used to connect solid-sawn joists, trusses, and engineered joists to masonry walls or steel beams.

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

The JHM range of joist hangers can be used to connect solid-sawn joists, trusses, and engineered joists to masonry walls or steel beams.

Features & Benefits

Built-in inspection slot at the base of the hanger to aid inspection from the ground
The top flange provides the widest area in contact with masonry support allowing superior performance
Embossments on JHM stiffen top flange and holes allow improved mortar keying
Safe working load for joists shot fired to steel girders is 5.17kN
Made from pre-galvanised mild steel
Up to 10kN Safe Working Load
JHM side flange on deeper hangers is much higher than the traditional style, providing greatly enhanced resistance to joist rotation.

Technical Specifications

type	Joist Hanger
unit	each
width	47 mm
finish	Galvanised
height	225 mm
material	Pre-Galvanised Steel
thickness	2 mm
brand name	Simpson Strong-Tie
made to order	N
pack quantity	1
range description	Builder Metalwork
manufacturer model no	JHM225/47

Datasheets

Reference

243448

pack quantity

1
thickness

2 mm
height

225 mm
width

47 mm
range description

Builder Metalwork
unit

each
finish

Galvanised
manufacturer model no

JHM225/47
type

Joist Hanger
made to order

N
material

Pre-Galvanised Steel
brand name

Simpson Strong-Tie
