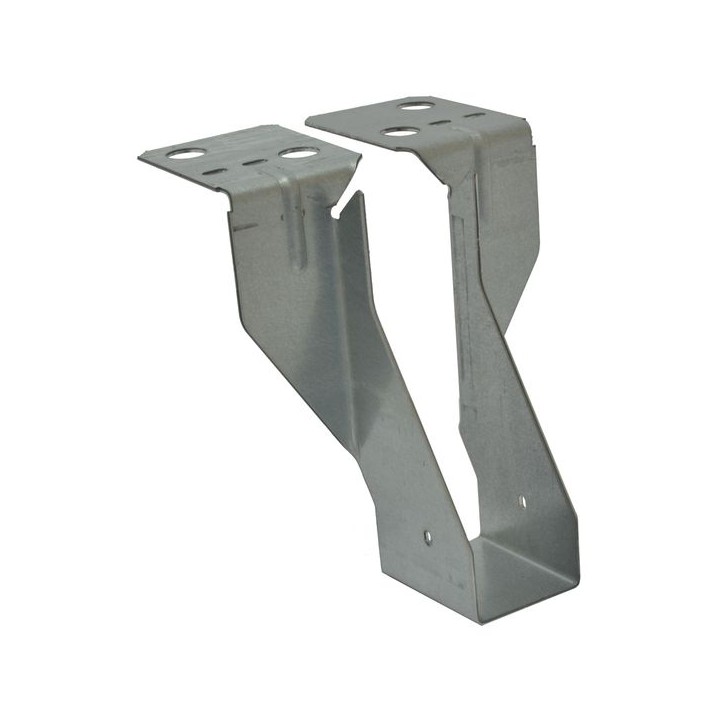

Simpson Strong-Tie Masonry Supported Joist Hanger 200 mm x 47 mm JHM200/47

Simpson Strong-Tie Masonry Supported Joist Hanger 200 mm x 47 mm JHM200/47

1.53

ex. VAT

£1.84 inc. VAT

The JHM range of joist hangers can be used to connect solid sawn joists, trusses and engineered joists to masonry walls or steel beams.

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

The JHM range of joist hangers can be used to connect solid sawn joists, trusses and engineered joists to masonry walls or steel beams.

Features & Benefits

Built-in inspection slot at the base of the hanger to aid inspection from the ground
The top flange provides the widest area in contact with masonry support allowing superior performance.
Embossments on JHM stiffen top flange and holes allow improved mortar keying.
JHM side flange on deeper hangers is much higher than the traditional style, providing greatly enhanced resistance to joist rotation.

Technical Specifications

type	Joist Hanger
unit	each
width	47 mm
finish	Galvanised
height	200 mm
material	Pre-Galvanised Steel
thickness	2 mm
brand name	Simpson Strong-Tie
made to order	N
pack quantity	1
range description	Builder Metalwork
manufacturer model no	JHM200/47

Reference

110280

pack quantity

1
thickness

2 mm
height

200 mm
width

47 mm
range description

Builder Metalwork
unit

each
finish

Galvanised
manufacturer model no

JHM200/47
type

Joist Hanger
made to order

N
material

Pre-Galvanised Steel
brand name

Simpson Strong-Tie
