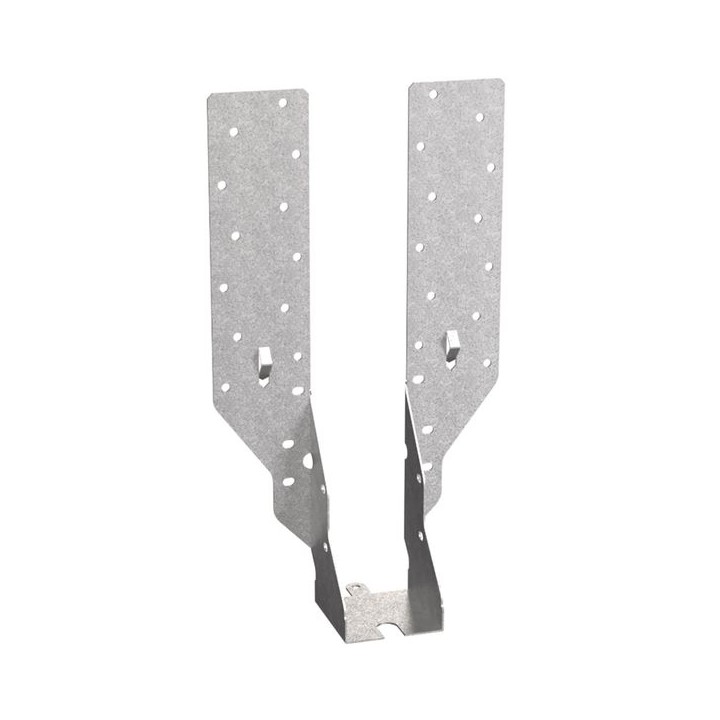

Simpson JHA270/75 Timber to Timber Joist Hanger

1.43

ex. VAT

£1.72 inc. VAT

JHAs are height-adjustable joist hangers used to support timber joists from timber members. This can be fitted quickly and accurately due to the adjustable height strap, location tab, and speed prongs. This product is the standard leg (JHA270) version and can be installed directly on the bearing joist or wrapped over the top to achieve higher performance.

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Features & Benefits

A galvanised joist hanger that provides great support with ease of installation.
Published performance values are based upon 3.75 x 30mm square twist nails being used throughout.
Wider strap provides more surface area on the supporting timber and allows increased nail spacing, enhancing the performance of the critical hanger-to-support part of the connection.
Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.
Speed-prong holds the hanger in position to allow easier attachment. The installer no longer has to try to hold hanger, joist and nail with one hand and swing a hammer with the other!
JHA270 range features a location tab which allows easier alignment of the hanger.
The model number and size is stamped into the seat of the hanger for easy identification, even after installation.

Technical Specifications

type	Joist Hanger
unit	each
width	75 mm
colour	Steel
finish	Galvanised
height	242.5 mm
material	Pre-Galvanised Steel
thickness	0.90 mm
brand name	Simpson Strong-Tie
made to order	N
pack quantity	1
range description	Builder Metalwork
manufacturer model no	JHA270/75
